Name: S-Type Pitot Tube
SKU: 1569
Availability: InStock

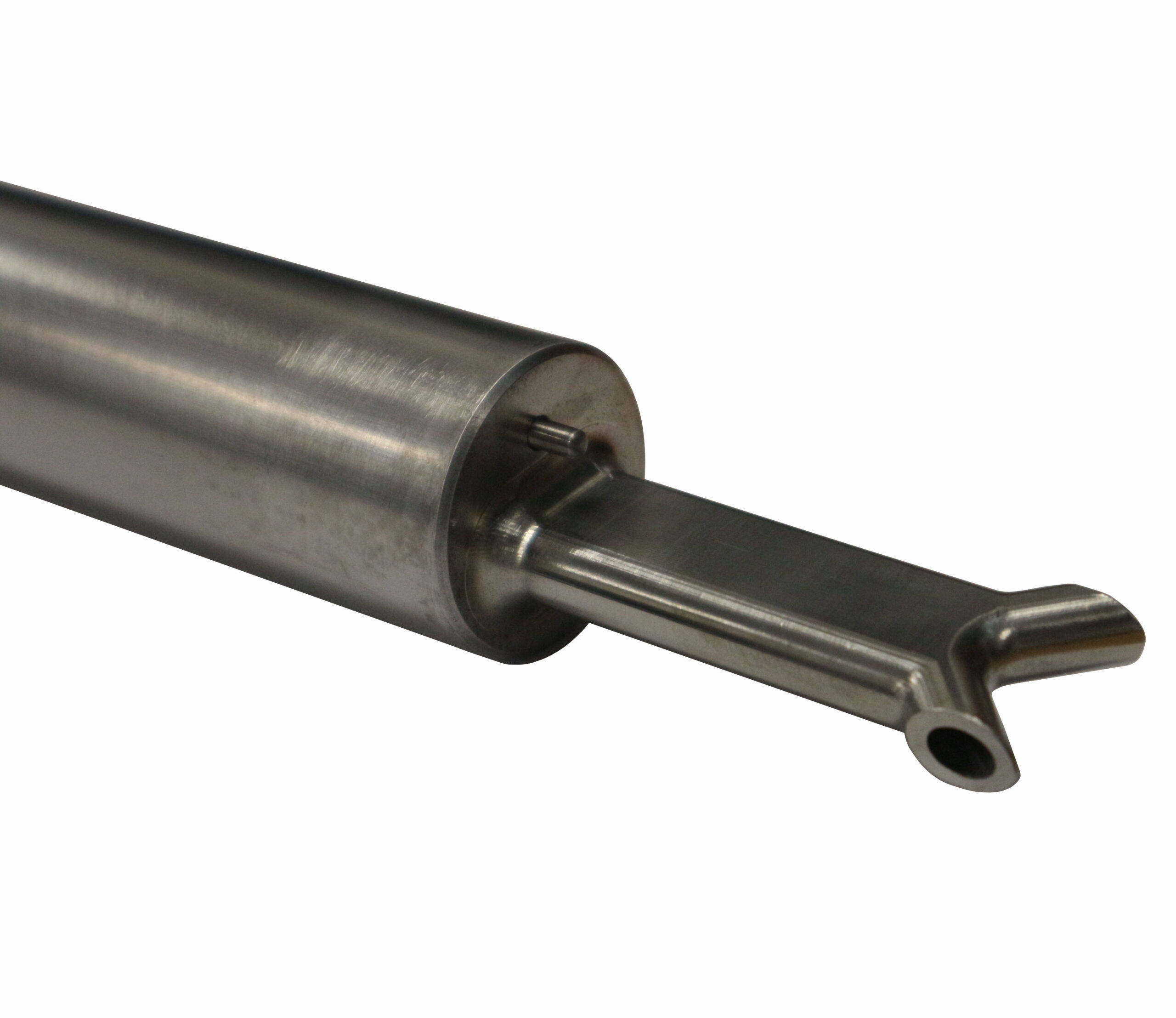

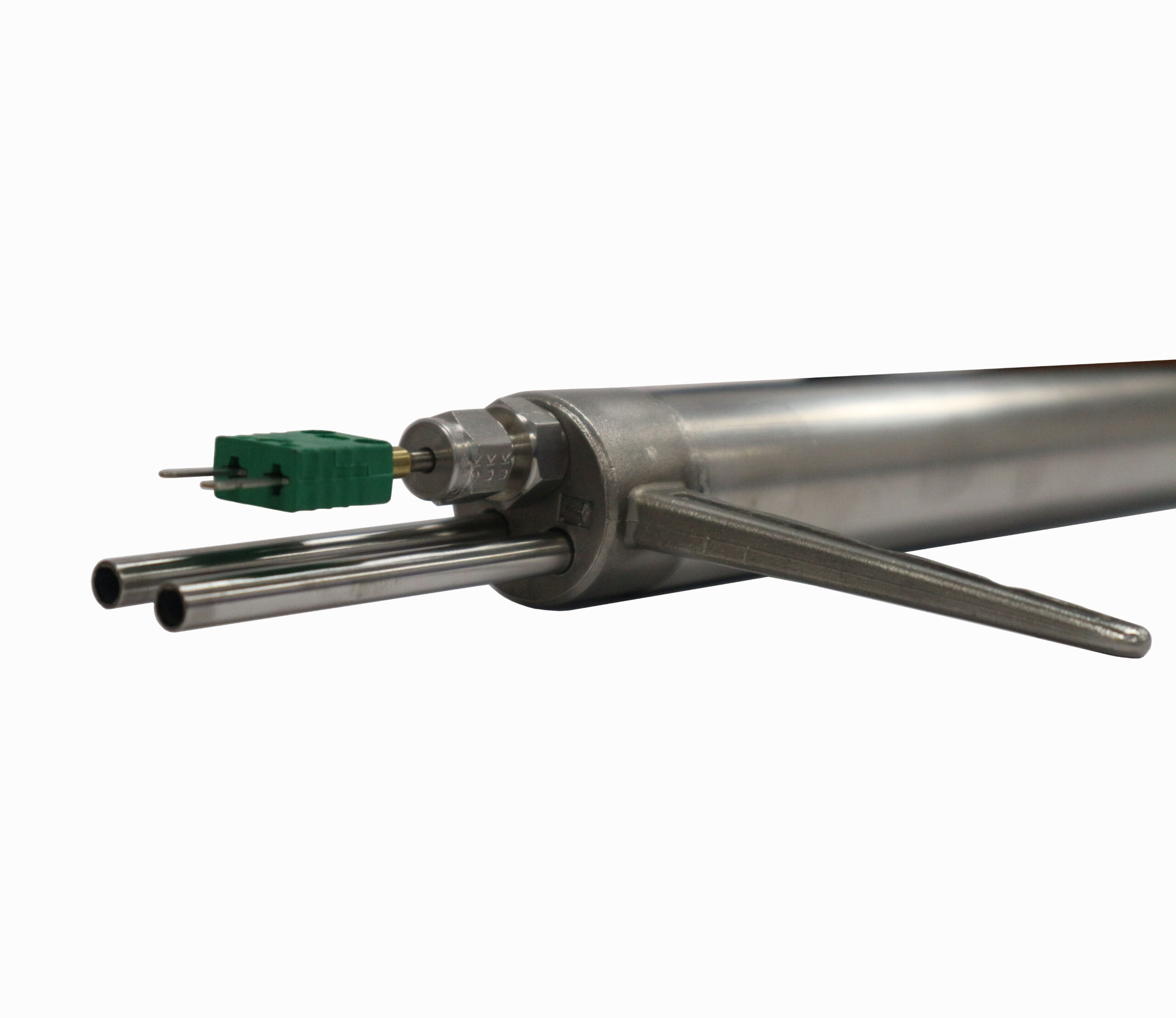

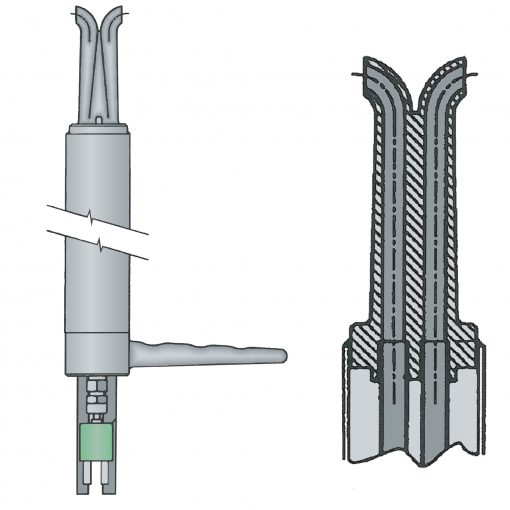

S-Type Pitot Tubes consist of a precision machined special nose, which is welded to stainless steel total and sub-static pressure tubes, enclosed in an overall stainless steel sheath. It is widely used in sampling applications where particulate levels are high as their relatively large sensing holes make them less prone to clogging than other Pitots. They only require a Ø35mm access hole, regardless of duct wall thickness and the integral thermocouple allows for simultaneous monitoring of duct air temperature and velocity with minimal disturbance.

Complies with Standards	BS ISO 10780
Magnification Factor (M)	1.422 with an accuracy of +/- 5% of reading

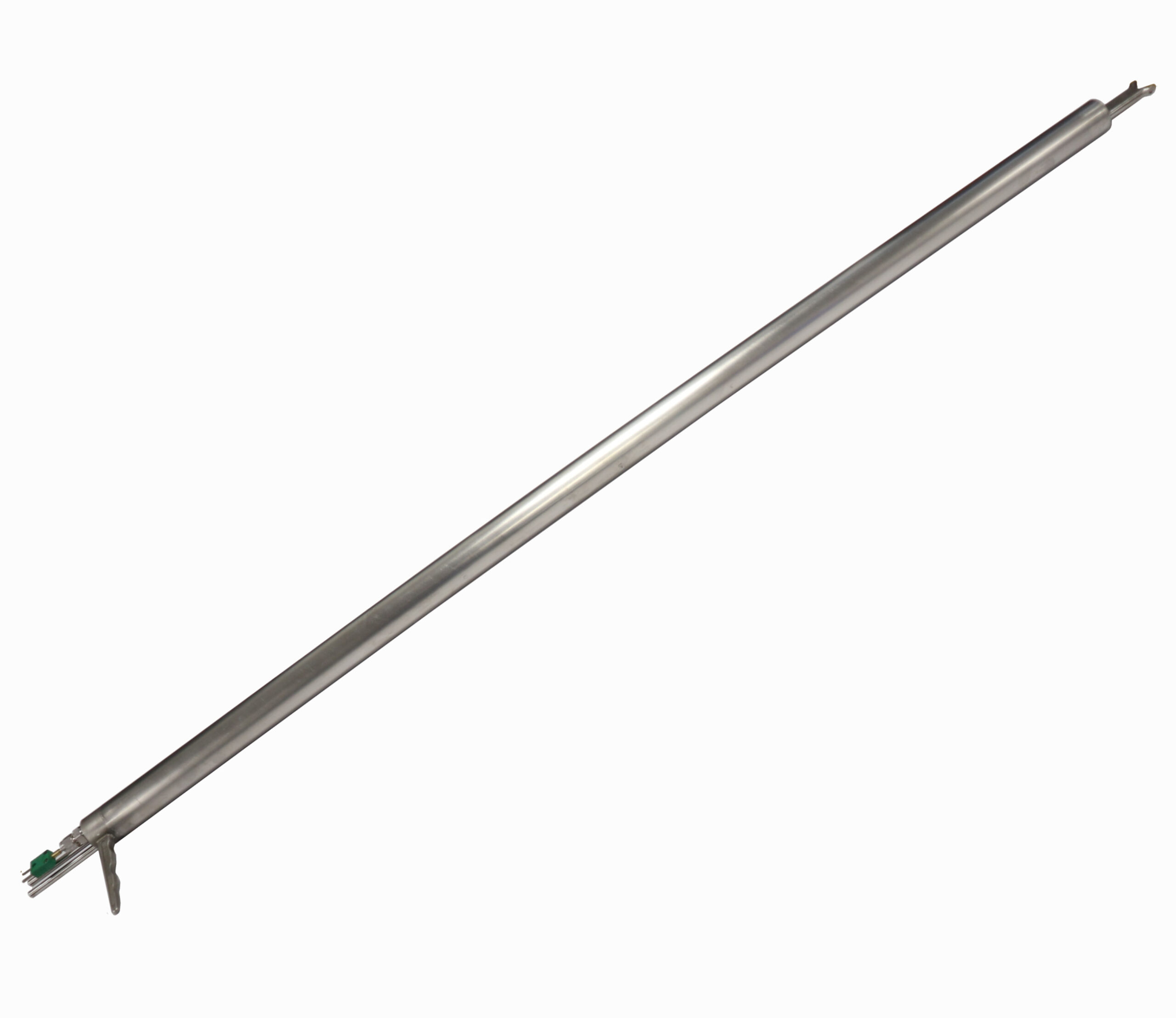

Sizes Available	32mm diameters available in four standard length, 0.7m, 1.2m, 2.2m and 3.2m
Temperature Range	680°C Continuously & 800°C Intermittently
Materials	Fully Stainless Steel Construction
Special Functions	Only requires an access hole 35mm, regardless of duct wall thickness. Precision CnC machined head gives more predictable result than a fabricated head.
