testo 420

The testo 420 volume flow hood for larger air inlets and outlets enables fast and precise compliance with hygiene guidelines and requirements concerning room air quality. It provides reliable support with the calculation of the overall volume flow on HVAC systems, for instance in hospitals, office buildings or commercial buildings.

High measuring accuracy at swirl outlets thanks to integrated volume flow straightener

Volume flow is frequently measured at swirl outlets. Air flows are often incorrectly measured due to the turbulent air at these outlets. The testo 420 volume flow hood means you can significantly reduce these measurement errors. The integrated volume flow straightener calms the turbulence and converts it into a virtually uniform air flow. This enables accurate calculation of volume flow in the 80 to 3,500 m3/h range.

Exceptionally light volume flow hood with fast set-up

The volume flow hood with ergonomic handles and tilt-able display has an exceptional weight of less than 2.9 kg. This means that frequent volume flow calculations in large rooms and measurements above head height can also be carried out reliably and comfortably. In the process, a large measuring button on the volume flow hood ensures easy recording of the readings.

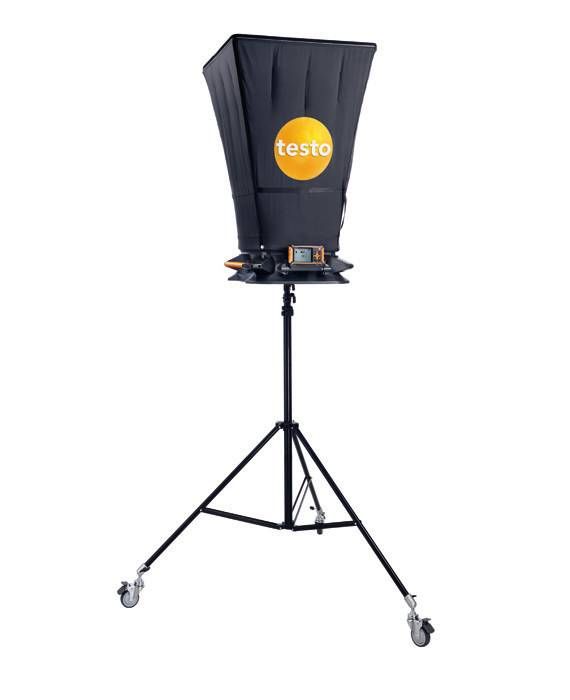

The dimensions of the hood are 610 x 610 mm. We offer additional hoods as accessories for further ceiling outlets. The use of our optional tripod arm is a great help for air inlets and outlets which are located very high up. It can be extended up to 3.3 metres.

The volume flow hood is quick and easy to set up thanks to tension rods. The trolley which is included in the scope of delivery ensures safe transport.

Create protocols directly on site and mail them using the App connection

Take advantage of further practical functions and download our free App. Because the App connection enables mobile devices such as smartphones and tablets to be used as a secondary display and remote control via Bluetooth. This is particularly practical for using a tripod arm for high ceilings.

The App enables live measurement on HVAC systems using a start and stop function and the saving of measurement data in .txt format. You can create the measurement protocol directly on site using the App. Measurement results, such as the overall volume flow and the air exchange rate, can be directly assigned to customer-specific protocol templates. You can then send your readings and protocols via the e-mail function. This means you save a considerable amount of time and increase efficiency.
