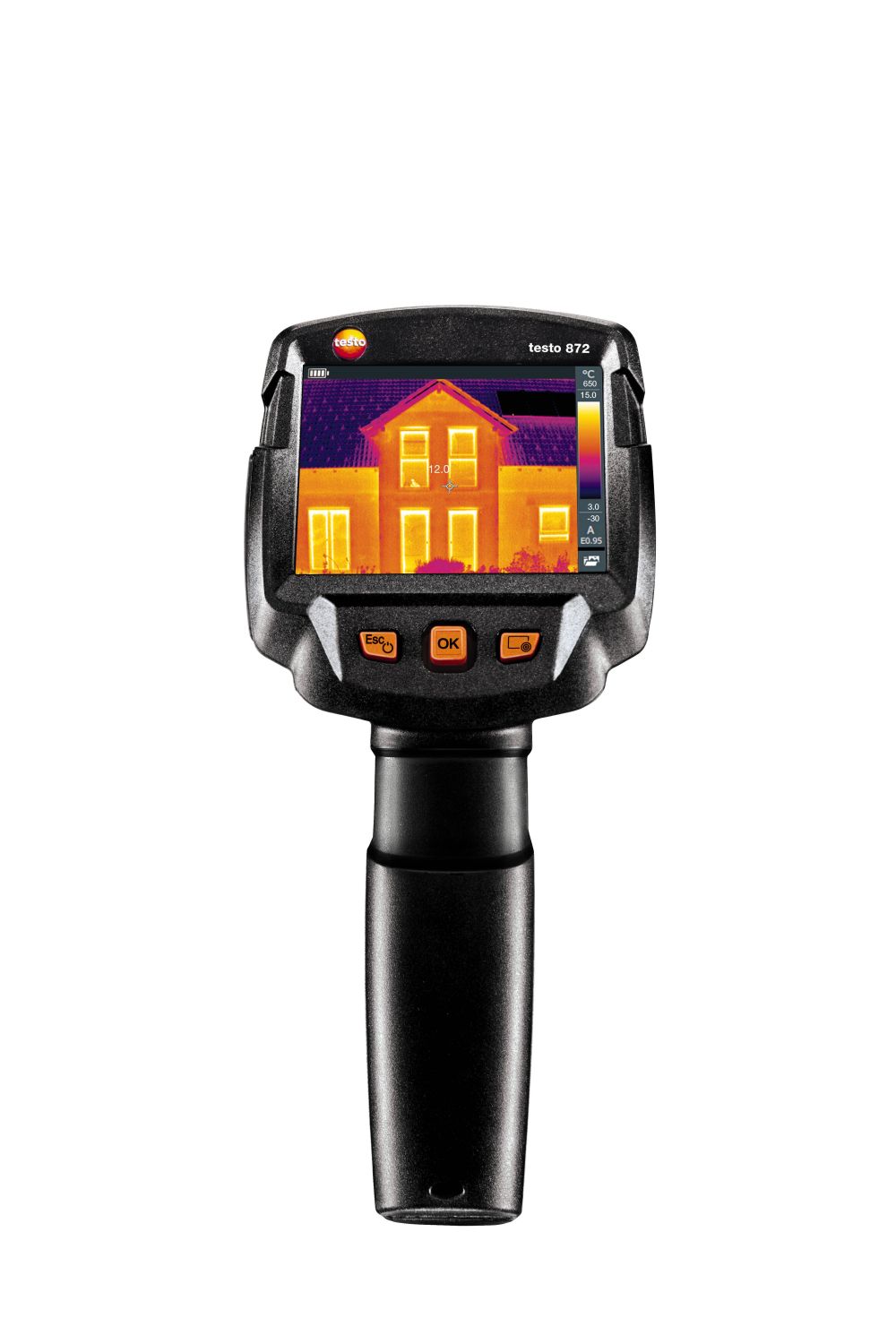

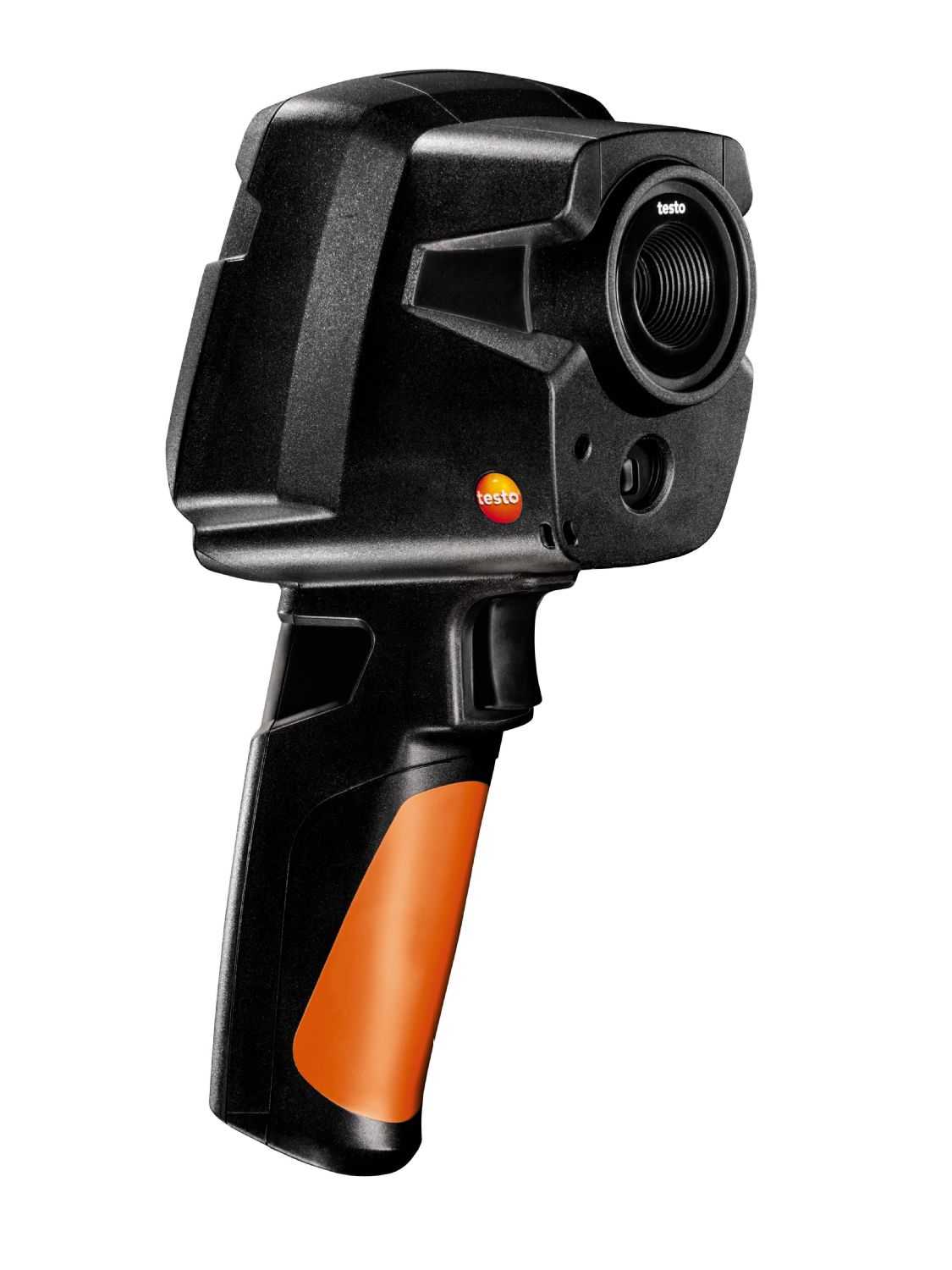

testo 872 thermal imager
testo 872 thermal imager
testo 872 thermal imager

testo 872s

£2,199.00

The testo 872s thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

SKU: 872-0560-8725 Categories: , , Tags: , ,

Product Description

The testo 872s thermal imager is ideally suited for professional industrial and building thermography – at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of thermal image scale.

The testo 872s thermal imager – smart and networked

The testo 872s thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

The testo 872s delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 872s. The thermal imager wirelessly integrates the measurement results of these measuring instruments via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.

Technical highlights of the testo 872s thermal imager
The testo 872s thermal imager is characterized by its easy handling and its outstanding image quality. Its technical features are impressive:

  • Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from as little as 0.05°C
  • testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online
  • Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
  • Built-in digital camera and laser marker generate a real image in parallel to the thermal image
  • Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

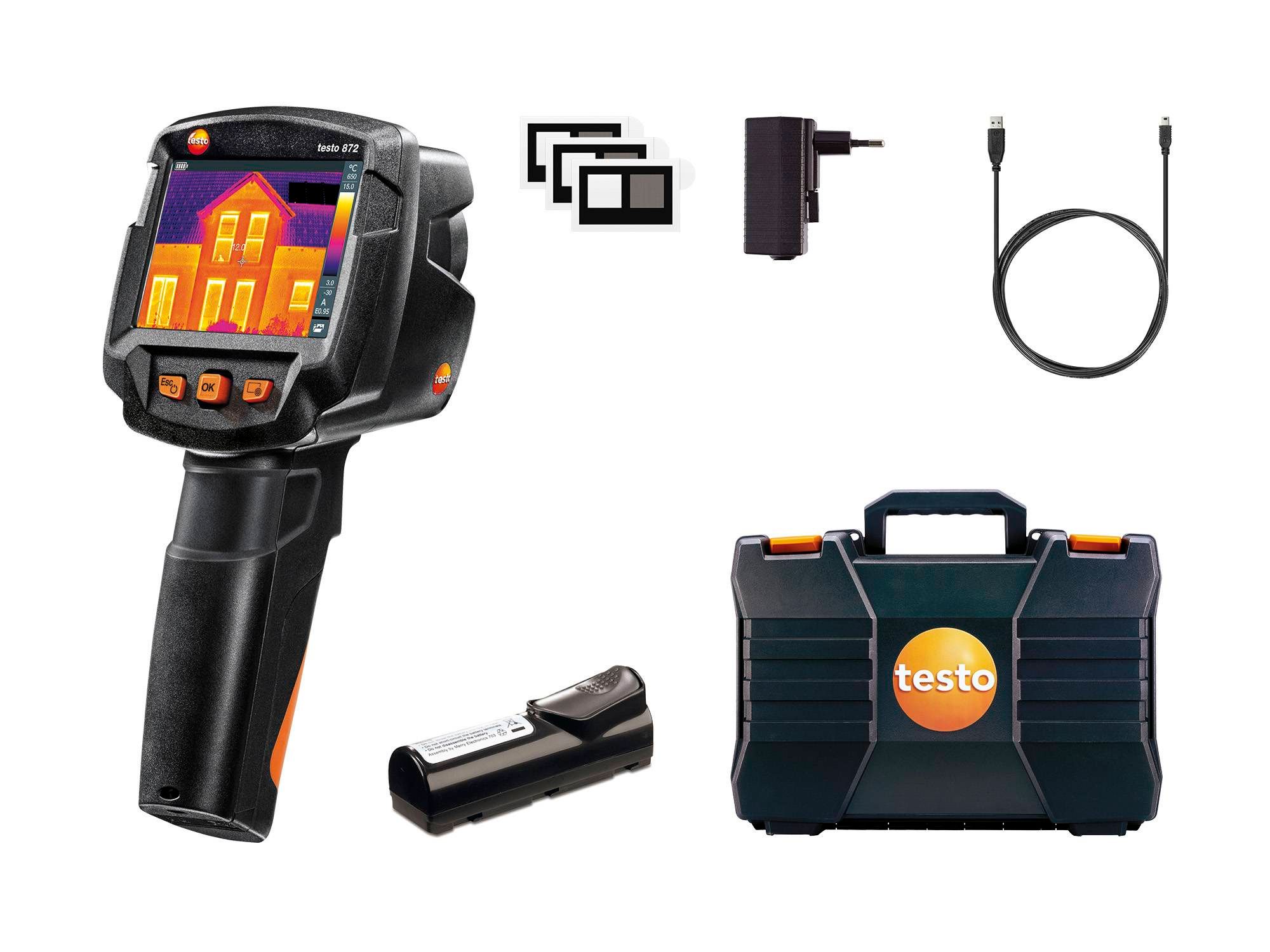

Included Accessories:

  • USB cable
  • mains unit
  • lithium-ion rechargeable battery
  • pro software IRSoft (free download)
  • 3 x testo ε-Markers
  • commissioning instructions
  • short instructions
  • calibration protocol and case
Standards
EU-/EG-guidelines RED:2014/53/EU: 2014/30/EU
Infrared image output
Field of view 42°x30°
Focus Fixed focus
Minimum focus distance <0.5 m
Geometric resolution (IFOV) 2.3 mrad
Image refresh rate 9 Hz
Infrared resolution 320 x 240 pixel
SuperResolution (IFOV) 1.3 mrad
SuperResolution (Pixel) 640 x 480 pixels
Thermal sensitivity <0.05°C 50 mK
Spectral range 7.5 to 14 µm
Image output visual
Minimum focus distance min. 0.5 m
Image size 5 MP
Image presentation
Colours 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Digital zoom 2x; 4x
Display option IR image / real image
Display type 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
Measurement
Accuracy ±2 °C, ±2 % of m.v.
Emissivity 0.01 to 1
Measuring range -30 to +100°C; 0 to +650°C
Reflected temperature manual
testo ε-Assist Included
Measuring function
Analysis function Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)
Solar mode – manual Input of solar radiation value
Electrical mode – manual Input of current, voltage or power
Humidity mode – manual Included
Humidity measurement with humidity measuring instrument Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
IFOV warner Included
testo ScaleAssist Included
Electrical measurement
with clamp meter		 Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
Imager equipment
Video streaming via wireless LAN with testo Thermography App
Standard lens 42° x 30°
JPEG storage Included
Full screen mode Included
Digital camera Included
Interface USB 2.0 Micro B
WLAN Connectivity Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
Bluetooth Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Laser Laser marker
Imager storage
File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Storage device Internal Memory (2.8 GB)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Mains operation yes
Operating time 4 h
Charging options In instrument / charger (optional)
Ambient Condition
Air humidity 20 to 80 %RH non-condensing
Housing protection class IP54
Vibration 2G
Storage temperature -30 to +60 °C
Operating temperature -15 to +50 °C
Physical specification
Product-/housing
material		 PC – ABS
Weight 510 g
Dimensions 219 x 96 x 95 mm
PC software
System requirements Windows® 10; Windows® 8.1
General technical data
Product colour Black
Display lighting bright / normal / dark

Areas of application of the testo 872s thermal imager

Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872s thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.
